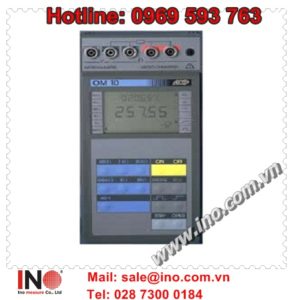

OM 10

Portable micro-ohmmeter up to 50 KΩ and 100 mA

OM 10 portable micro-ohmmeter performs 4-wire measurements of inductive and non-inductive resistances up to 50 KΩ with continuous or pulse measuring current up to 100 mA.

  • 4-wire resistance measurement up to 50 kΩ at 10 µΩ resolution and 0.05% accuracy
  • Voltage measurement up to 400 V at 1 V resolution and 1% accuracy
  • Continuous measurement current for inductive loads or pulse measurement current for non-selfic resistances
  • Automatic compensation of thermal E.M.F.
  • Temperature compensation
  • Metal temperature compensation

Instrument:

OM10                    On-site micro-ohmmeter

Clips and probes:

Please note that 2 clips are needed per OM 10.

AN5806-2               Gold plated Kelvin clips, set of 2

Opening diameter: 12 mm, cable length: 2 m

AN5806C               Kelvin clips, set of 2

Opening diameter: 12 mm, cable length: 3 m

AMT003                 Test probe, per unit

Cable length: 5 m

AMT004                 Kelvin clip, per unit

Opening diameter: 25 mm, cable length: 3 m

Certification:

QMA11EN              COFRAC certificate of calibration
